PNK MR 250Y Roots vacuum pump
Roots vacuum pumps are suitable for all kinds of medium and low vacuum applications.
Motor power(50Hz): 1.1Kw
Pumping speed (50Hz): 250m3/h
Limit vacuum: 0.5Pa
Would you like to know more?
Please contact us directly(China PRONOTEK):
Download product sheet
PNK MR-Y Series Roots vacuum pump Performance advantage
Specification parameters
Technical parameter | Unit | PNK MR 250Y |
---|---|---|
Pumping speed | m3/h | 250 |
Limiting partial pressure | Pa | 0.05 |
Limiting total pressure | Pa | 0.5 |
Max. Permitted differential pressure | Pa | 8000 |
Air inlet and outlet ventilation | mm | 65 |
Zero flow maximum compression ratio | max | ≥35 |
Noise | dB(A) | 63 |
Power | Kw | 1.1 |
Speed | r/min | 3000 |
Cooling method | Natural air cooling | |
Weight | kg | 100 |
Recommended front stage pump | PNK SP 0100 |

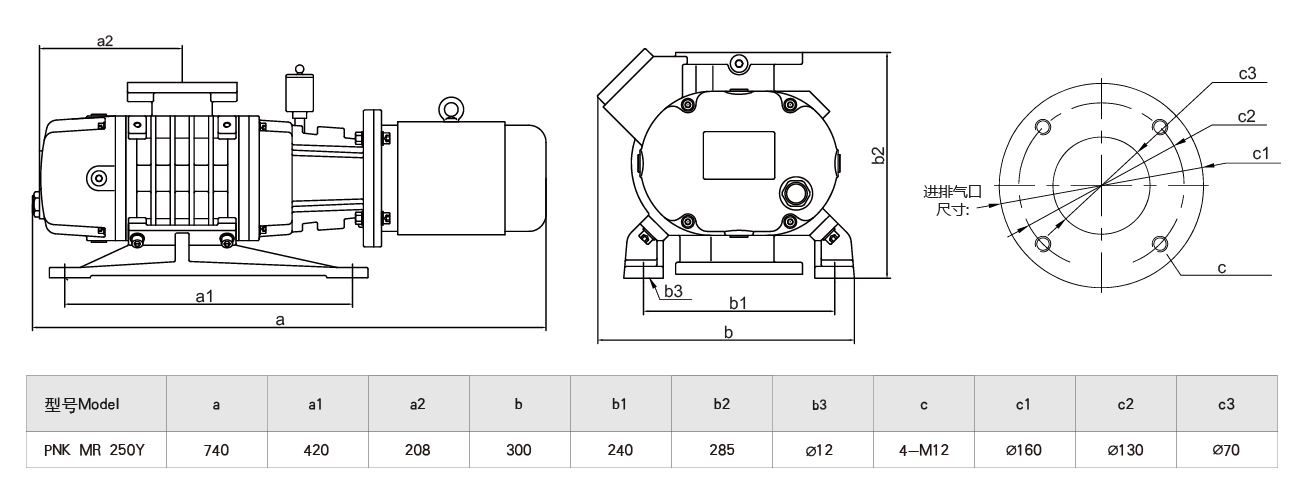

Mounting dimensions

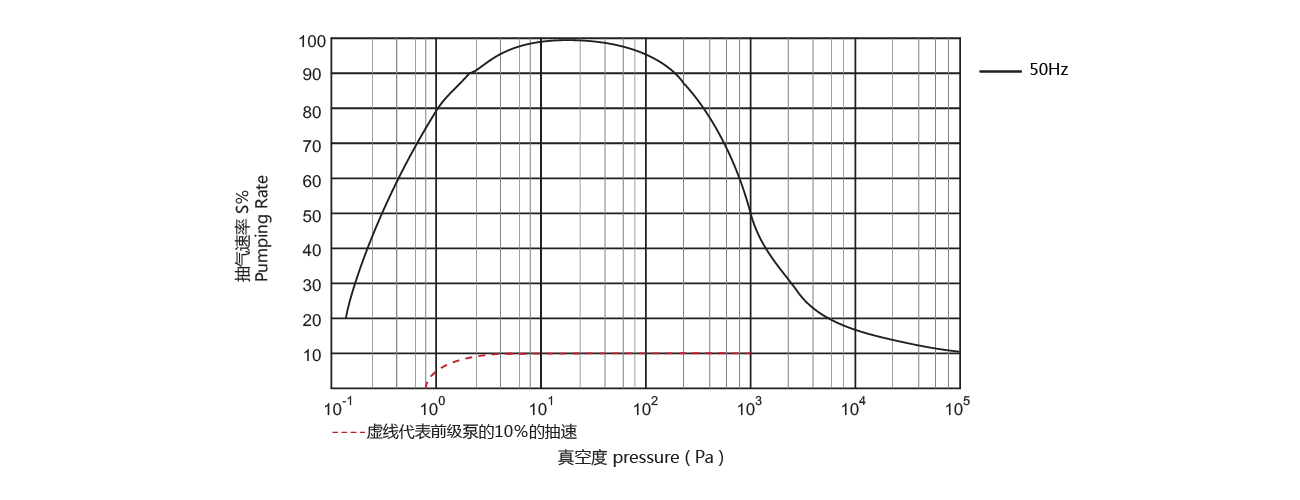

Performance curve
Parts
Download
